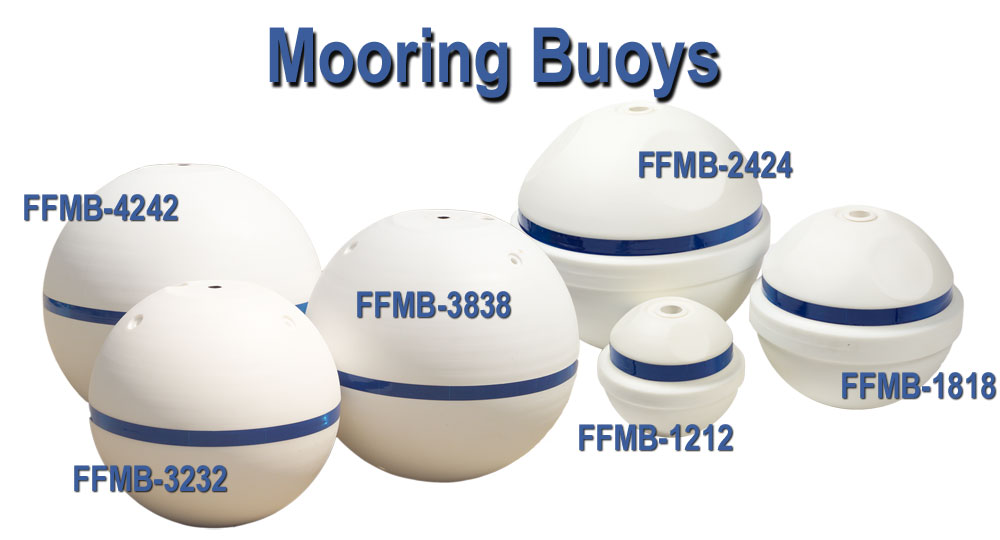

The innovative design of Ace Mooring Buoys is easy to recognize. Designed to be durable and attractive, the buoys have several new features and can be personalized with little effort. The hard polyethylene shell has UV inhibitors to keep it looking new. Polystyrene foam fills the shell to provide maximum buoyancy. A PVC tube is molded through the center of the buoy to allow for different hardware options. An injection-molded collar captures the tube on each end and protects the buoy from wear. Buoys can be used to mark waterways, can be rented to boaters at your marinas, or can be used to support the line to which you anchor your own watercraft.
Visit our Ace Dock Accessories Page
CHECK OUT OUR ACE DOCK ACCESSORIES CATALOG
CLICK HERE to view our 12″, 18″ & 24″ Mooring Buoys and Hardware Options
Mooring Buoy Installation Instructions
View the PDF version of our Marine Cushions, Buoys or Marine Accessories Warranty for warranty details.
View technical drawings by clicking on the part number below.
| Part No. | Description | Dimensions | Case Dimensions | Case Shipping Weight |
| FFMB-1212 | Buoy, 12″, Mooring Foam Filled | 12″ diameter | 12.5 lbs | 4 lbs. |
| FFMB-1818 | Buoy, 18″, Mooring Foam Filled | 18″ diameter | 51 lbs | 8 lbs. |
| FFMB-2424 | Buoy, 24″, Mooring Foam Filled | 24″ diameter | 124 lbs | 16 lbs |
| FFMB-3232 | Buoy, 32″ Mooring Foam Filled | 32″ diameter | 278 lbs | 41 lbs |
| FFMB-3838 | Buoy, 38″ Mooring Foam Filled | 38″ diameter | 556 lbs | 65 lbs |
| FFMB-4242 | Buoy, 42″ Mooring Foam Filled | 42″” diameter | 86 lbs | |
| FFMB-P | Pass-Through Mooring System | 2 lbs | ||
| FFMB-12F | 12″ Fixed Mooring System | 12″ | 2 lbs | |
| FFMB-18F | 18″ Fixed Mooring System | 18″ | 3 lbs | |
| FFMB-24F | 24″ Fixed Mooring System | 24″ | 3 lbs | |
| FFMB-32F | 32″ Fixed Mooring System | 32″ | 5.5 lbs | |
| FFMB-38F | 38″ Fixed Mooring System | 38″ | 6 lbs | |
| FFMB-42F | 42″ Fixed Mooring System | 42″ | 6.5 lbs | |
| Part No. | Description | Dimensions | Case Dimensions | Case Shipping Weight |
