Open Top Containment Tanks
Open Top Containment

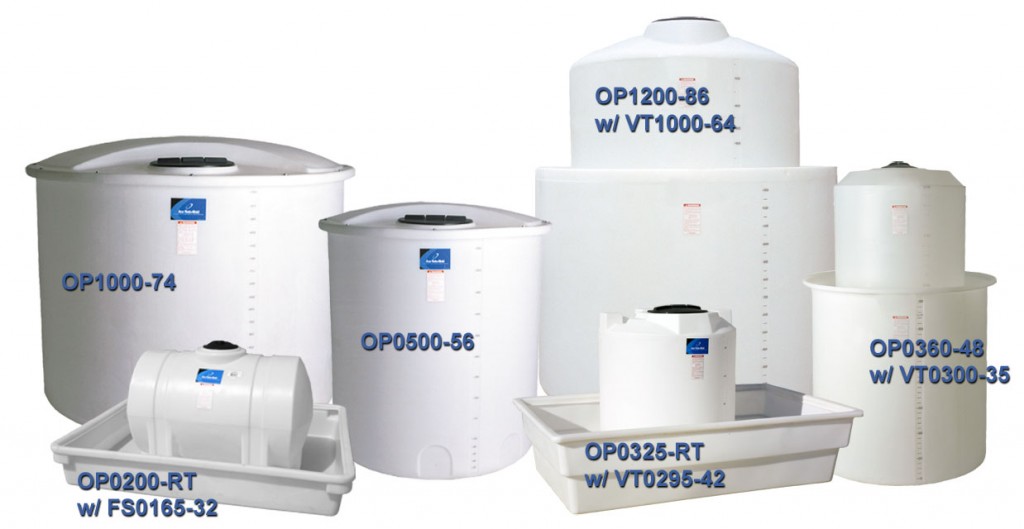

Open Top Containment Tanks

Open Top Tanks are selected for collection systems, temporary liquid storage, or as secondary containment for vertical tanks in indoor or outdoor installations. Tanks are manufactured from medium or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators.  The Open Top Rectangle Tanks (RT) are ONLY for secondary containment purposes.  They are not to be utilized for primary storage of liquids.

View technical drawings by clicking on the part number below.

*Tank comes with one standard fitting

^RT Tanks are ONLY for secondary containment purposes

Part No. Capacity Weight Dimensions Specific Gravity
OP0055-2DC 2 – 55 Gallon Drums 70 34 x 62 x 26 1.7
OP0055-23* 55 Gallon with bolt-on top 26 23 x 36 2.0
OP0100-RT^ 100 Gallon Rectangle 26 43 x 43 x 17 1.7
OP0100-23* 100 Gallon with bolt-on top 36 23 x 62 2.0
OP0145-36* 145 Gallon with bolt-on top 52 36 x 39 2.0
OP0150-RT^ 150 Gallon Rectangle 35 47 x 60 x 16 1.7
OP0200-RT^ 200 Gallon Rectangle 78 66 x 78 x 12 1.7
OP0200-36* 200 Gallon with bolt-on top 58 36 x 51 2.0
OP0210-RT^ 210 Gallon Rectangle 52 53 x 65 x 18 1.7
OP0210-40 210 Gallon 48 40 x 42 2.0
OP0250-36* 250 Gallon with bolt-on top 76 36 x 61 2.0
OP0300-RT^ 300 Gallon Rectangle 82 57 x 95 x 18 1.7
OP0325-RT^ 325 Gallon Rectangle 115 60 x 96 x 24 1.7
OP0325-36* 325 Gallon with bolt-on top 92 36 x 80 2.0
OP0360-48 360 Gallon 115 48 x 50.75 2.0
OP0425-RT^ 425 Gallon Rectangle 94 69 x 71 x 25 1.7
OP0500-56 500 Gallon with bolt-on top 150 56 x 65 2.0
OP0625-RT^ 625 Gallon Rectangle 145 72 x 108 x 24 1.7
OP0635-64 635 Gallon with bolt-on top 102 64 x 53 1.7
OP0825-RT^ 825 Gallon Rectangle 276 73 x 73 x 66 1.7
OP0900-86 900 Gallon 175 86 x 43 1.7
OP1000-74 1000 Gallon with bolt-on top 277 74 x 64 1.7
OP1010-64 1010 Gallon with bolt-on top 252 64 x 83 1.7
OP1060-86 1060 Gallon with bolt-on top 192 86 x 56 1.7
OP1200-86 1200 Gallon 200 86 x 54 1.7
OP1210-64 1210 Gallon with bolt-on top 277 64 x 100 1.7
OP1325-RT^ 1325 Gallon Rectangle 360 84 x 84 x 60 1.7
OP1350-86 1350 Gallon 217 86 x 62 1.7
OP1360-86 1360 Gallon with bolt-on top 230 86 x 67 1.7
OP1500-86 1500 Gallon 240 86 x 68 1.7
OP1505-64 1505 Gallon with bolt-on top 337 64 x 117 1.7
OP1510-86 1510 Gallon with bolt-on top 252 86 x 71 1.7
OP1660-86 1660 Gallon with bolt-on top 280 86 x 76 1.7
OP1700-90 1700 Gallon 317 91 x 66 1.7
OP1825-RT^ 1825 Gallon Rectangle 520 96 x 96 x 62 1.7
OP2000-RT^ 2000 Gallon Rectangle 570 96 x 96 x 68 1.7
OP2010-64 2010 Gallon with bolt-on top 465 64 x 158 1.7
OP2060-86 2060 Gallon with bolt-on top 402 86 x 95 1.7
OP2200-90 2200 Gallon 365 91 x 85 1.7
OP2700-90 2700 Gallon 480 91 x 103 1.7
OP3300-102 3300 Gallon 550 102 x 105 1.7
OP3700-96 3700 Gallon 625 96 x 128 1.7
OP6800-120 6800 Gallon 1525 120 x 146 1.7
Part No. Capacity Weight Dimensions Specific Gravity
