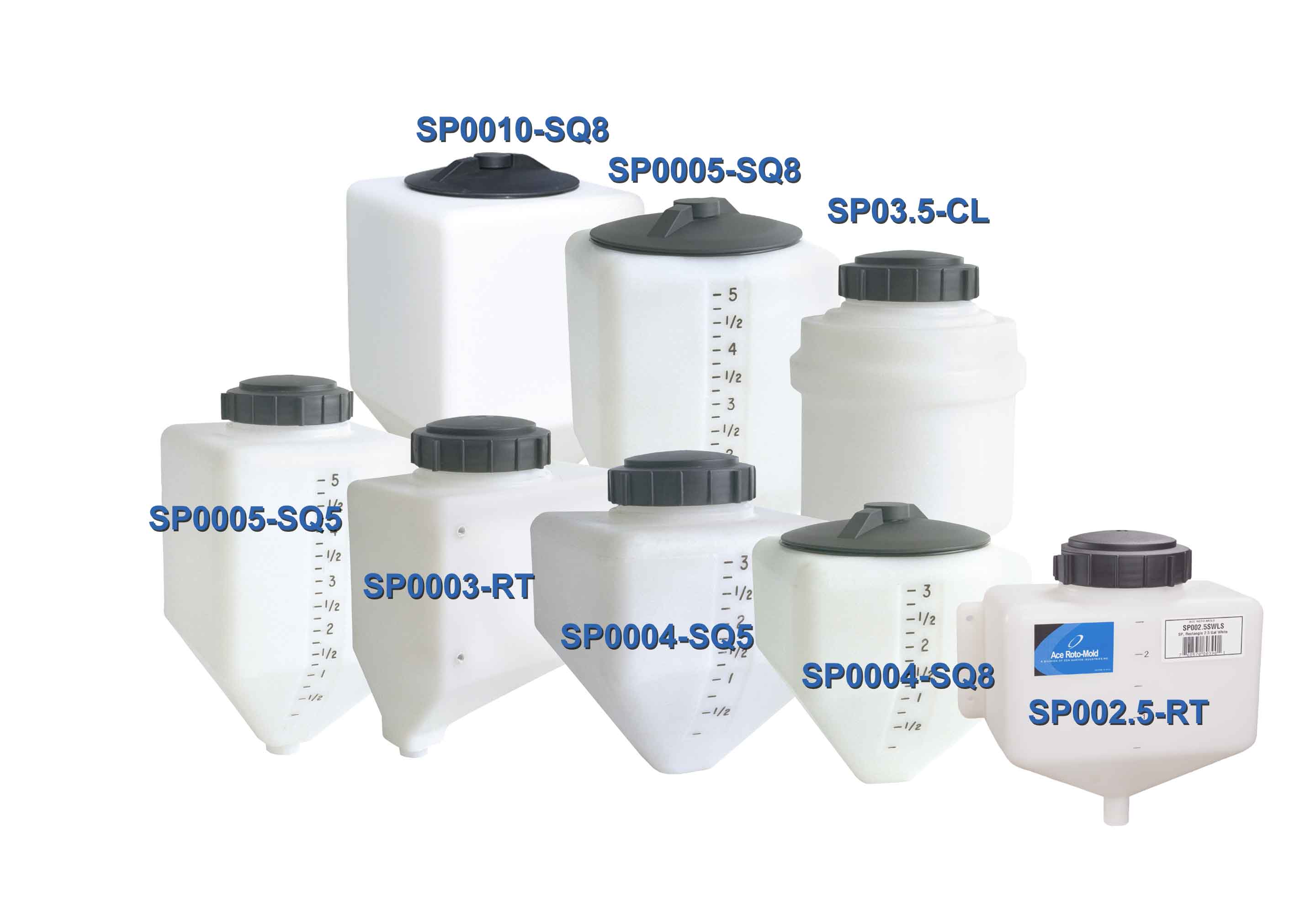

Specialty Rinse Tanks

Specialty Tanks are available for a variety of custom applications in both stationary and portable configurations. Tanks are manufactured from medium-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

View technical drawings by clicking on the part number below.
† indicates can be shipped via UPS/Fed Ex

Part No. Capacity Weight Dimensions Lid Fitting
SPBM2.5-RT † 2.5 Gal Rectangle 4 7 x 15 x 14 5″ 3/4″
SPBM003-RT † 3 Gal Rectangle 4 7 x 12 x 14 5″ 3/4″
SP003.5-CL† 3.5 Gal Cylinder 5 11 x 15 5″ 3/4″
SPBM04-SQ5 † 4 Gal Square 5 11 x 11 x 15 5″ 1-1/4″
SPBM04-SQ7 † 4 Gal Square 5 11 x 11 x 15 7″ 1-1/4″
SPBM04-SQ8 † 4 Gal Square 5 11 x 11 x 14 8″ 1-1/4″
SPBM05-SQ5 † 5 Gal Square 5 11 x 11 x 20 5″ 1-1/4″
SPBM05-SQ7 † 5 Gal Square 5 11 x 11 x 20 7″ 1-1/4″
SPBM05-SQ8 † 5 Gal Square 5 11 x 11 x 18 8″ 1-1/4″
SP0010-SQ8† 10 Gal Square 10 13 x 13 x 21 8″ 1-1/4″
SP0015-SQ5 † 15 Gal Square 16 16 x 16 x 23 5″ 1-1/4″
SP0015-SQ7 † 15 Gal Square 16 16 x 16 x 24 7″ 1-1/4″
SP0015-SQ8 † 15 Gal Square 16 16 x 16 x 23 8″ 1-1/4″
Part No. Capacity Weight Dimensions Lid Fitting
