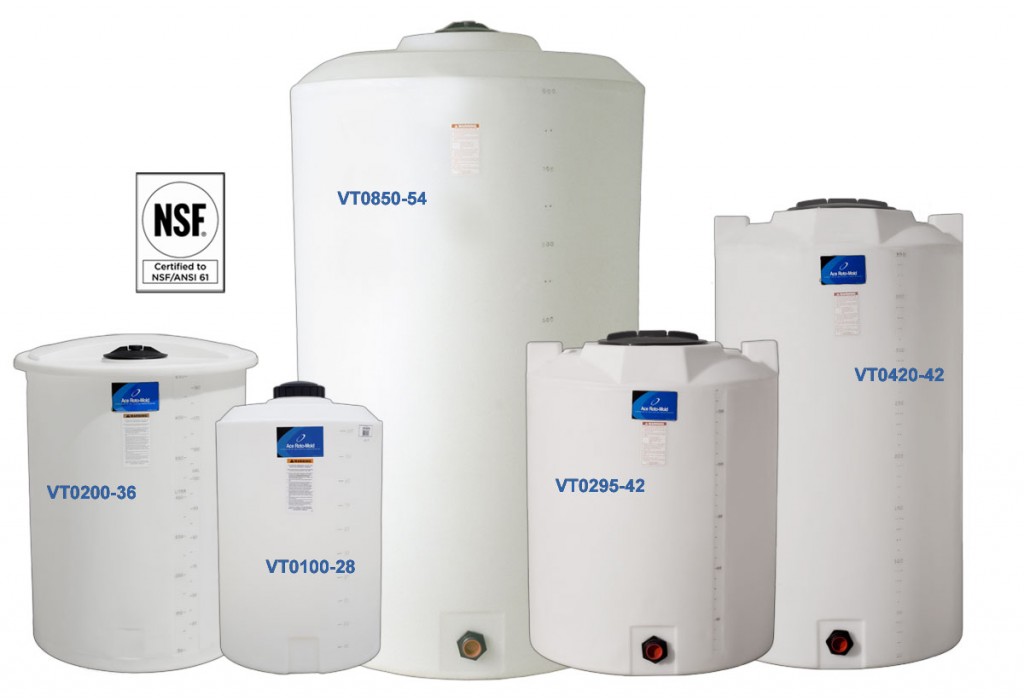

Vertical – Flat Top tanks feature additional flats for fitting installation or mounting. Tank are free standing with a flat bottom for indoor or outdoor installations. Ace Roto-Mold Vertical Tanks conform to the requirements of NSF/ANSI Standard 61. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators.
† Indicates can be shipped via UPS/Fed Ex
| Part No. | Capacity | Weight | Dimensions | Lid | Fitting | Specific Gravity |
| VT0055-23† | 55 Gallon | 26 | 23 x 38 | 8″ | 1″ | 2.0 |
| VT0075-23† | 75 Gallon | 30 | 23 x 50 | 7″ | 1″ | 2.0 |
| VT0100-23† | 100 Gallon | 36 | 23 x 64 | 8″ | 1″ | 2.0 |
| VT0100-28† | 100 Gallon | 38 | 28 x 45 | 7″ | 1″ | 2.0 |
| VT0105-23† | 105 Gallon | 40 | 23 x 65 | 7″ | 1″ | 2.0 |
| VT0130-32 | 130 Gallon | 47 | 32 x 46 | 8″ | 1″ | 2.0 |
| VT0135-28 | 135 Gallon | 47 | 28 x 59 | 8″ | 1″ | 2.0 |
| VT0145-36 | 145 Gallon | 52 | 36 x 40 | 8″ | 1″ | 2.0 |
| VT0160-28 | 160 Gallon | 58 | 28 x 68 | 8″ | 1″ | 2.0 |
| VT0175-31 | 175 Gallon | 56 | 31 x 61 | 8″ | 1-1/2″ | 2.0 |
| VT0180-40 | 180 Gallon | 50 | 40 x 45 | 5″ | 2″ Top | 2.0 |
| VT0200-36 | 200 Gallon | 58 | 36 x 53 | 8″ | 1 1/2″ | 2.0 |
| VT0210-40 | 210 Gallon | 58 | 40 x 49 | 5″ | 2″ Top | 2.0 |
| VT0225-31 | 225 Gallon | 67 | 31 x 76 | 8″ | 1-1/2″ | 2.0 |
| VT0250-36 | 250 Gallon | 76 | 36 x 62 | 8″ | 1 1/2″ | 2.0 |
| VT0265-31 | 265 Gallon | 76 | 31 x 88 | 8″ | 1-1/2″ | 2.0 |
| VT0295-42 | 295 Gallon | 74 | 42 x 55 | 16″ | 2″ | 2.0 |
| VT0300-35 | 300 Gallon | 88 | 35 x 81 | 8″ | 2″ | 2.0 |
| VT0325-36 | 325 Gallon | 92 | 36 x 81 | 8″ | 2″ | 2.0 |
| VT0420-42 | 420 Gallon | 102 | 42 x 75 | 16″ | 2″ | 2.0 |
| VT0500-46 | 500 Gallon | 120 | 46 x 77 | 8″ | 2″ | 2.0 |
| VT0850-54 | 850 Gallon | 184 | 54 x 94 | 8″ | 2″ | 1.7 |
| Part No. | Capacity | Weight | Dimensions | Lid | Fitting | Specific Gravity |
